CLASTR (Cell Line Authentication using STR) allows you to search for similarities between your cell line samples and the extensive number of human cell lines STR profiles stored in the Cellosaurus.

Allele data is inputed in the form of values separated by commas. The values are restricted to X and Y (case insensitive) for Amelogenin and numbers for STR markers. The period . character is also allowed in order to describe variant alleles (for example 9.3). Note that allele data is whitespace insensitive.

Using the Load File button from the user interface, it is possible to directly import STR profile data from a table file. Both mono and multi-samples files are supported. The functionality can be used to perform a similarity search on several samples at a time or to load quickly and reliably the marker data of a sample into the user interface.

The table file can be formatted either as an Excel file (.xls or .xlsx extension) or as a plain text file (.csv, .tsv or .txt extension). By default, the tool will assume that each row (except from the header) is a distinct sample. Note that a column named "Sample Name", "Name" or "Sample" is required and each submitted sample needs to have a corresponding value. The ordering of the marker columns is not important. The name of the markers need to be indicated correctly. For Amelogenin, the program recognizes "Amel" and "AM" as valid names.

In addition to the format standard described previously, the tool was also made compatible with the following software:

• GeneMapper ID-X

Problematic cell lines, which can be the result of either a contamination or a misidentification, have their accession number displayed in red in the result table. When hovering over them, a tooltip displays the relative Cellosaurus information concerning their problematic status.

In some cases, sources disagree on the allele values of a given marker. These cases are underlined in the result table and the corresponding sources are indicated in a tooltip when hovering over them. When a cell line possesses conflicted markers, the different combinations of alleles are computed and the Best and Worst reported as distinct rows with an additional label after their accession number.

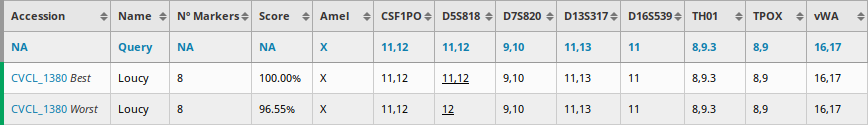

For instance, the Loucy cell line (CVCL_1380) has a conflict for the D5S818 STR marker. DSMZ reports 11,12 while ATCC and Cosmic-CLP report 12:

As a result, the score is computed on two different STR profiles: one with 11,12 and one with 12. Based on the scoring results, the profile with 11,12 as allele value is defined as the Best profile since its a better match for the query. The second profile is consquently defined as the Worst profile:

In more complex cases, a STR marker can have more than two conflicting sources or several STR marker can be conflicted. While the number of generated profile combination is larger, the base principle remains the same. The score is computed for all generated profiles and only the Best and Worst are reported in the results.

The color indicator displayed at the left side of each row in the result table allows to easily detect the cell lines that are related. Related cell lines have a green indicator while unrelated cell lines have a red indicator. The orange indicator describes mixed results where related cell lines that have high mutation rates can be found.

The color thresholds based on the score are defined as follows:

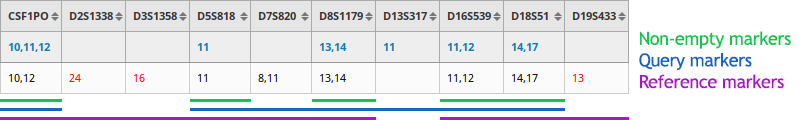

The Nº Markers column reports the number of STR markers that were used in the score computation. It is influenced by the scoring mode selected and the inclusion of Amelogenin in the score computation. Note that a minimum of eight STR markers is recommended for accurate results.

The CLASTR REST API allows to easily search STR profiles without having to go through the user interface. Two main modes are available: Single entry mode query to search a single sample and Batch mode query to search more than one sample at a time.
